The ConnectDR X-Ray technology offers lightweight, flexible panel detectors, advanced image acquisition software, and the ability to seamlessly incorporate your high-quality images into a fully connected imaging storage and distribution system. Multiple panel options are available to accommodate the full spectrum of equine imaging requirements.
The Connect DR—a digital radiography (DR) system that delivers fast, high-quality imaging in a design that makes it simple to store, share, and collaborate with other veterinarians. This system offers a level of integration unmatched by any other DR solution available today. With just one button, you can capture and share images, ensuring you're never isolated in making decisions, even with the most challenging cases. The newest panel designs are lighter for ease of use and more durable to withstand demanding environments.
Fully Integrated System – This cutting-edge architecture not only stores X-ray images but also allows you to add ultrasound scans, endoscopic images, and even video assessments of animals directly from your smartphone. The system is intuitive and streamlined, transforming communication between you, fellow veterinarians, and pet owners.

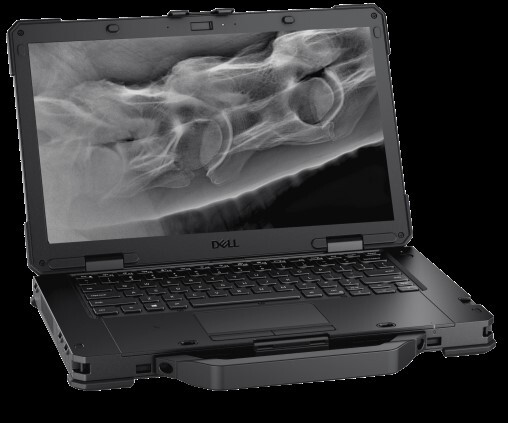

Durable Design – We use rugged laptops and glass-free panels, understanding that reliability and resilience are crucial for equine veterinarians. The system is designed to perform flawlessly every time it’s powered on. For small animal veterinarians, we’ve integrated touchscreen hardware and user-friendly software to reduce the time it takes to capture X-rays.
Versatile Panel Sizes – Choose from panel sizes of 10×12 (24×30), 14×17 (30×40), or 17×17 (43×43) to meet all your imaging needs.
Comprehensive Support – Whether you're out in the field, back at the clinic, or in a fast-paced small animal practice, our support system ensures you get the assistance you need. With fully connected systems, our team can remotely connect to help you achieve the best imaging results at any time.
Wireless or tethered image transfer | Tethered |
Dental X-ray processing option | |
Time to display image | 2 seconds |
Portable | |
Battery or mains powered? | Mains |
Weight (Main unit) | 2kg |
Weight (panel) | 4.5kg |
Depth (panel) | 1.5cm |
Height (panel) | 46cm |
Width (panel) | 46cm |
Power requirements/line voltage | DC 24 V, 0.6 A |
Technology | a-Si TFT |
Scintillator | CsI / Gadox |
Pixel Pitch | 140 ㎛ |
Spatial Resolution | 3.5 lp/㎜ |
Pixel Matrix | 3072 x 3072 pixels |
Image Size | 17" x 17" (43.0 ㎝ x 43.0 ㎝) |
Grayscale | 16 bits |
Image Acquisition Time | 2 s |
Image Acquisition software | Standard subscription |
Recommended Cycle Time | 15 s |
Data Interface | Gigabit Ethernet |
X-ray Generator Interface | DR trigger Mode AED Mode |
Physical dimensions | 46.0 ㎝ x 46.0 ㎝ x 1.5 ㎝ |
X-ray Voltage Range | 40 - 150 kVp |
Power Consumption | DC 24 V, 0.6 A |
Warranty | 1 year |
